RS-Full vacuum transfer printer series

⊙The whole machine is designed and manufactured according to the high demand,reliability function and safety production.
⊙Selects the high quality materials and accessories, all the drive rollers adopted high quality steel materials, hard chrome plating and the surface treated by surface grinded.
⊙Fixed units,each unit adopts the vacuum adsorption type conveyer.printing unit topping adopts servo control,to achieve precision printing network.
⊙The machine adopts PLC touch screen control,can be stored and reuse the ordered data,it can change rapidly ,operate more convenient.
⊙Remote detection of faults can be realized through the network, and equipment faults can be quickly eliminated.
⊙Automatic zero and automatic reset.
⊙Transfer roller impression cylinder,the clearance of anilox roller is controlled by computer.
⊙It adopt the paper central dust collection system.

Commodity name： RS-Full vacuum transfer printer series

Classification:

Products

Hotline:

+8613722705282

Get Quote

Function and characteristic:

The whole machine is designed and manufactured according to the high demand,reliability function and safety production.

Selects the high quality materials and accessories, all the drive rollers adopted high quality steel materials, hard chrome plating and the surface treated by surface grinded.

Fixed units,each unit adopts the vacuum adsorption type conveyer.printing unit topping adopts servo control,to achieve precision printing network.

The machine adopts PLC touch screen control,can be stored and reuse the ordered data,it can change rapidly ,operate more convenient.

Remote detection of faults can be realized through the network, and equipment faults can be quickly eliminated.

Automatic zero and automatic reset.

Transfer roller impression cylinder,the clearance of anilox roller is controlled by computer.

It adopt the paper central dust collection system.

Technical parameters:

Type	RS920	RS924	RS1224	RS1228
Project	RS920	RS924	RS1224	RS1228
Max.speed (piece /min)	350	280	250	230
Max.feed size (mm)	900*2100	900*2500	1200*2500	1200*2900
Min.feed size (mm)	300*600	300*600	300*600	300*600
Size of drawing paper (mm)	1200*2100	1200*2500	1500*2500	1500*2900
Max.printing area (mm)	900*2000	900*2400	1200*2400	1200*2800
Thickness of standard printing plate (mm)	7.2	7.2	7.2	7.2
Max.die size (mm)	900*2000	900*2400	1200*2400	1200*2800

Product Introduction

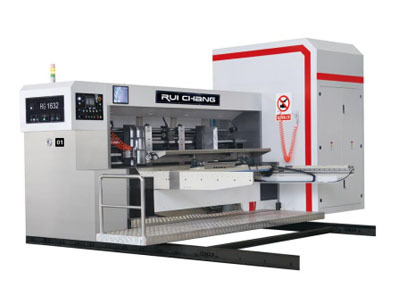

	Lead feeder unit ⊙Paper feeding can be continuous or skip paper(with counter). ⊙It adopt the lead edge roller to feed,can adjust the route,to ease the pressure on drawing paper roll. ⊙Lead edge feeding increase the section flow rate to make feeding smoothly and accuracy. ⊙Frequency conversion control vacuum air flow and pressure,to match the board size. ⊙Paper feeding rubber roller with soft inner and outer hard,keep the inner elastic and guarantee the surface wear resistance,reduce the cardboard was be squashed to be be sent in. ⊙Dust cleaning device:The brush and blower to remove cardboard surface confetti.Multiple fan straight smoke added electrostatic brush and turning round brush,the greatest degree remove dust board surface. ⊙About paper roller clearance,the position of the left right bar is adjusted by computer. ⊙Equipped with brush device to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface and to improve printing quality.

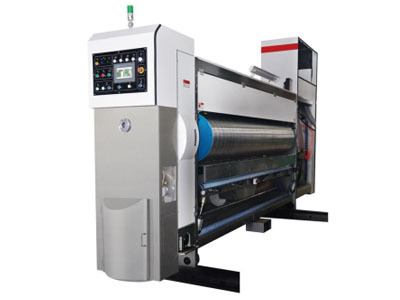

	Printing unit ⊙Scroll hanging version,locking 360 degrees,let operation of hanging plate is simple,more accurate registration. ⊙Changing plate quickly,it can fix the incline error when paste the plate,so that reach to the range of amendment. ⊙Adopting vacuum absorb and high precision to convey,high Printing precision. ⊙The fixed group be widen in printing unit,it can help dry the ink,to guarantee the printing precision. ⊙Printing roll phase adopt servo motor to drive,can connect to the Endat high precise encoder,guarantee the control precision of the servo drive system,topping-control contact to the servo directly,quick response and high precision. ⊙The transverse phase,computer and electric-digital control. ⊙lmported brand scraper ink system: ink cavity body for non-metal material, special never rust,easy to clean;Rapid change around the blade. ⊙Adopt automatic cleaning-switching device. Let the ink recycling more thoroughly and save the ink,when clean or change the color of the ink,can save ink 0.4-0.5kg per unit once.

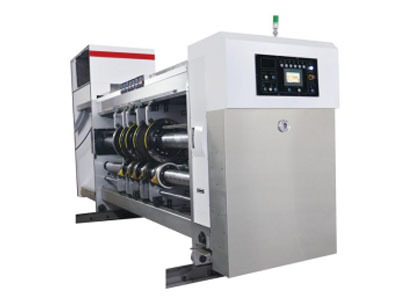

	Polishing unit ⊙ Pre-pressing device: Electically couped slotting and cutting and prepressing. ⊙ Automatically adjusted group data setting with frequency converter revision to ensurehigh precision. ⊙ Manually adjusted scoring wheel clearance with adjustment data displayed on the dial. ⊙ 7mm alloy steel scoring knives with indent heat treatment to enable grinding teeth shaip edge and high precision. ⊙ PLC,touch screen and motorized digital 360degree adjustment adopted form soltting phase with order being able to stored. ⊙ Additional portable orifice die backer. ⊙ Equipped with the inerlock control switch at slotting unit to achieve stop orresumepaper feed.

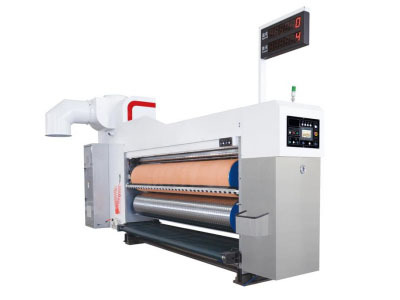

	Drying unit ⊙ With the servo motor drive,guarantee the shake of printing unit is few,to make print accurate. ⊙Rubber gasket roll compensation is controlled by independent motor drive,rubber mat roller speed,compensation scope±3.5mm,make the rubber gasket roller and die cutter roller speed is consistent. ⊙Rubber gasket roll machine screw reversing 50mm winding device,improve the service life of the rubber gasket. ⊙Transverse phase,computer and electric control,digital control in the plus or minus 10mm. ⊙Die-cutting phase adjustment by PLC,servo drive. ⊙The structure of the rubber gasket roller, keep the rubber gasket surface is flat and level.
